Oil Filter Wrench Artistically Made.
Perfect Presentation.
Multination-invention-paten-pending

After three years of R＆D﹐conutless tests and improvements﹐
we guarantee optimal quality﹐
parcticality and features below：
  • Removes any oil filter quickly. Diamond-sand-coated triple-clamp securely holds oil filter﹐with gripping force increasing as user turns the wrench﹒ Never any slippage.

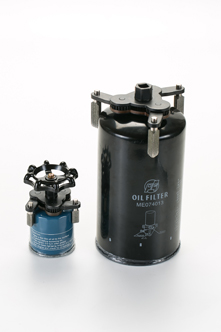

  • Two models (L01﹐S01) available for large and samall oil filters (75-138mm﹐55-95mm dia).
  • High torque：Model L01 to over 250Nm and S01 to over 150Nm.
  • Anti-slip design with non-slip pad at bottom and diamond-sand-coated triple-clamp.
  • User-friendly design
    (1) Strong magnet at bottom to enable wrench to hold oil filter for easy tool chang.
    (2) Model S01 with ratchet to install oil filter with ideal tightness
    (3) Short and long triple-clamps available for filter of any configuration and size
Patents
圖片

Store

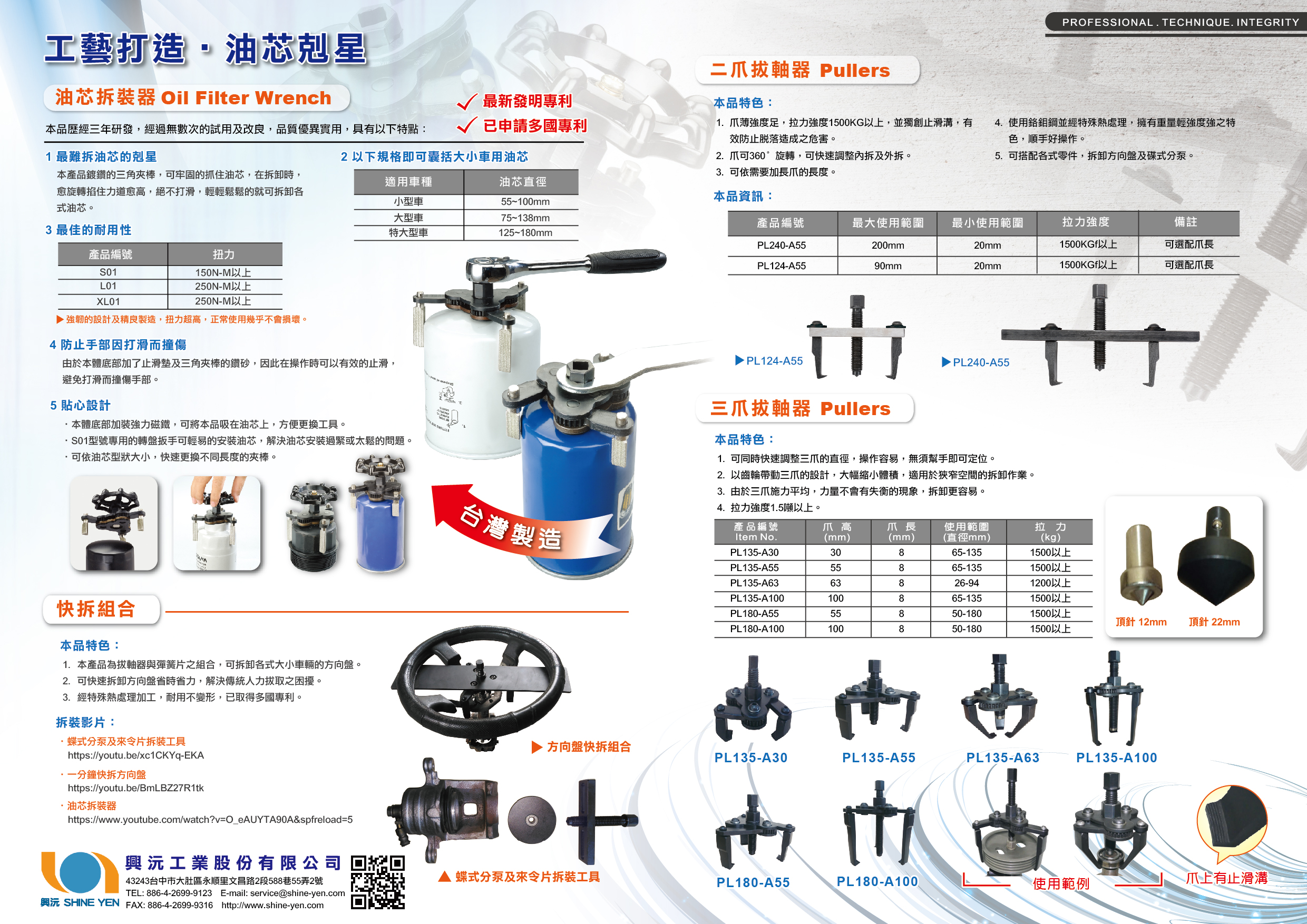

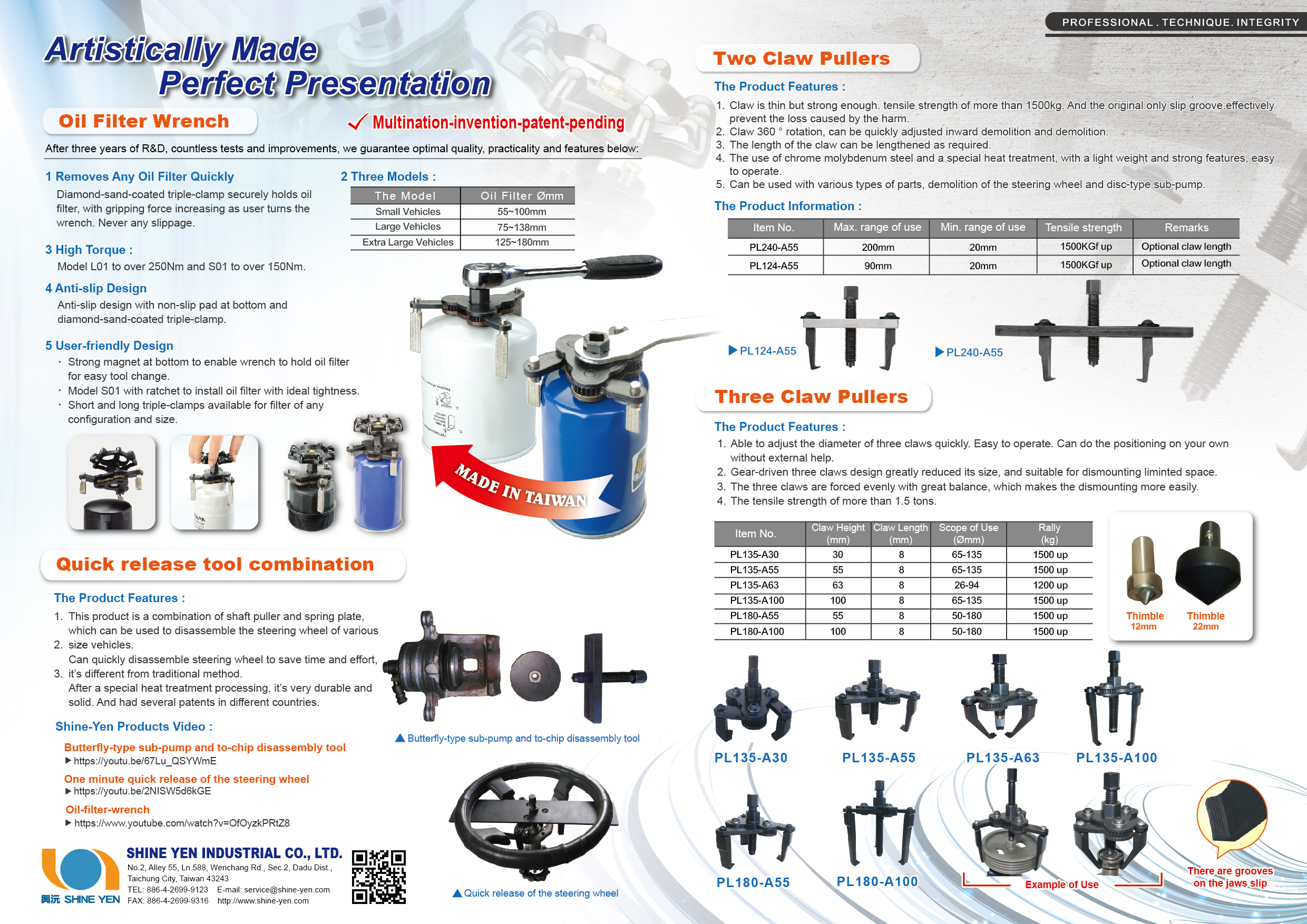

Catalog Download

Manual:

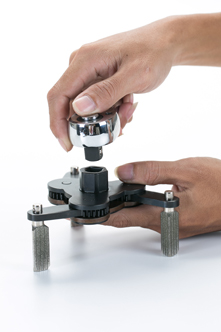

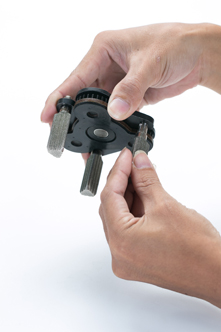

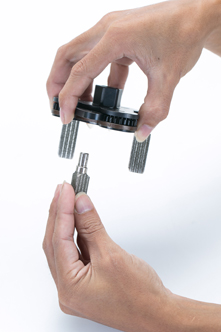

Step 1

Install the clamp-rods and wheel spanner to the face and bottom of the equipment respectively.

Step 1

Step 2

Adjust the spanner wheel to obtain a suitable clamp space that larger than diameter of oil filter slightly.

Step 2

Step 3

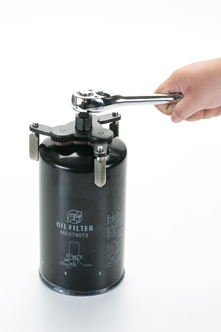

Socket the equipment onto the oil filter.

Step 3

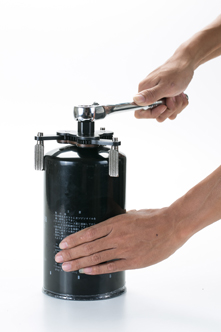

Step 4

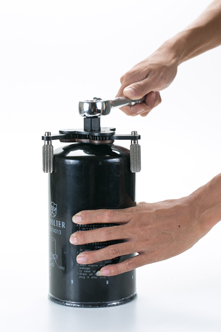

Rotate the wheel spanner until the clamp-rods clamp the oil filter firmly. Then the oil filter is able to dismount easily.

Step 3

Caution:

  • Be careful not to insert finger between the gears and linkages. Keep away the equipment from child.
  • In case of difficult to dismount oil filter, use spanner wrench with longer arm instead of wheel spanner.
  • Do proper lubrication in order to maintain good condition of the equipment.
  • Incase of slip, wipe away the oil on oil filter, clamp rods and anti-slip pad.
  • Oil Filter Wrench

    Oil Filter Wrench

    A combination of practicability and art. A breakthrough of normal design. Welcome any commercial terms.

  • Heat treatment process

    Heat treatment process

    Heat treatment process for Vehicle parts, Gears for cruise ship, electronic field metal parts and Gears for all terrain vehicles.

  • Technical developing service

    Technical developing service

    Overall solution in design and development of metal parts machining and heat treatment processes.
