Introduction
Two-jaw/Three-jaw puller Multination-invention-paten-pending
We guarantee optimal quality﹐parcticality and features below：
- Three-jaw puller features：
(1)Able to adjust the diameter of three claws quickly. Easy to operate. Can do the positioning on your own without external help

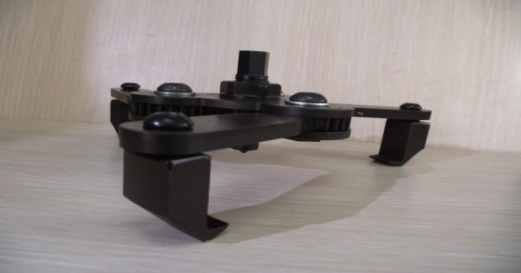

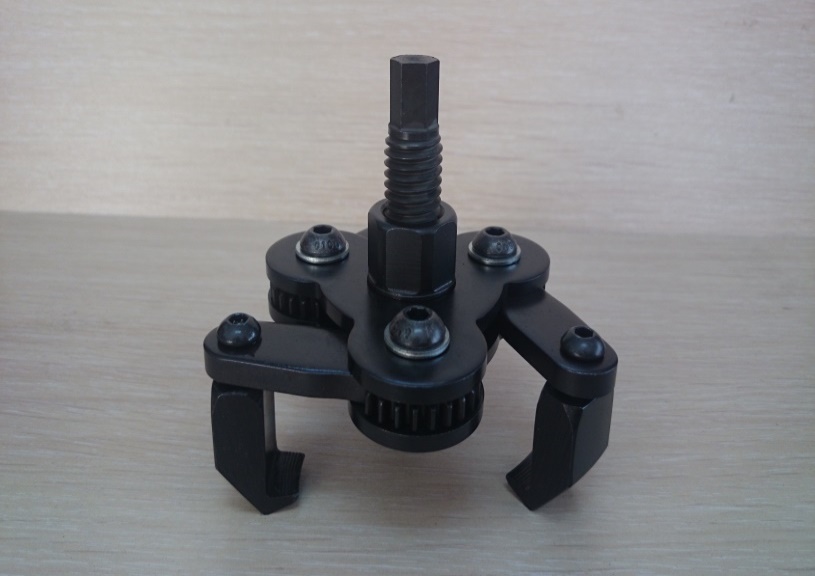

(2)The gear-driven three-claw design greatly reduces the size and is suitable for disassembly in narrow spaces, especially It is the claw of the A30, which is only 5 cm high.
(3)Due to the high precision of the three claws, the force is averaged, the force will not be unbalanced, and the disassembly is easier.
(4)The claws have a glide groove and will not slip when used.
(5)The tensile strength is almost 1.5 tons or more.
(6)The post can be used as needed and the length can be extended indefinitely.
(5)Special diagonal claws can be used to remove small diameter items
- Three-jaw puller specifications

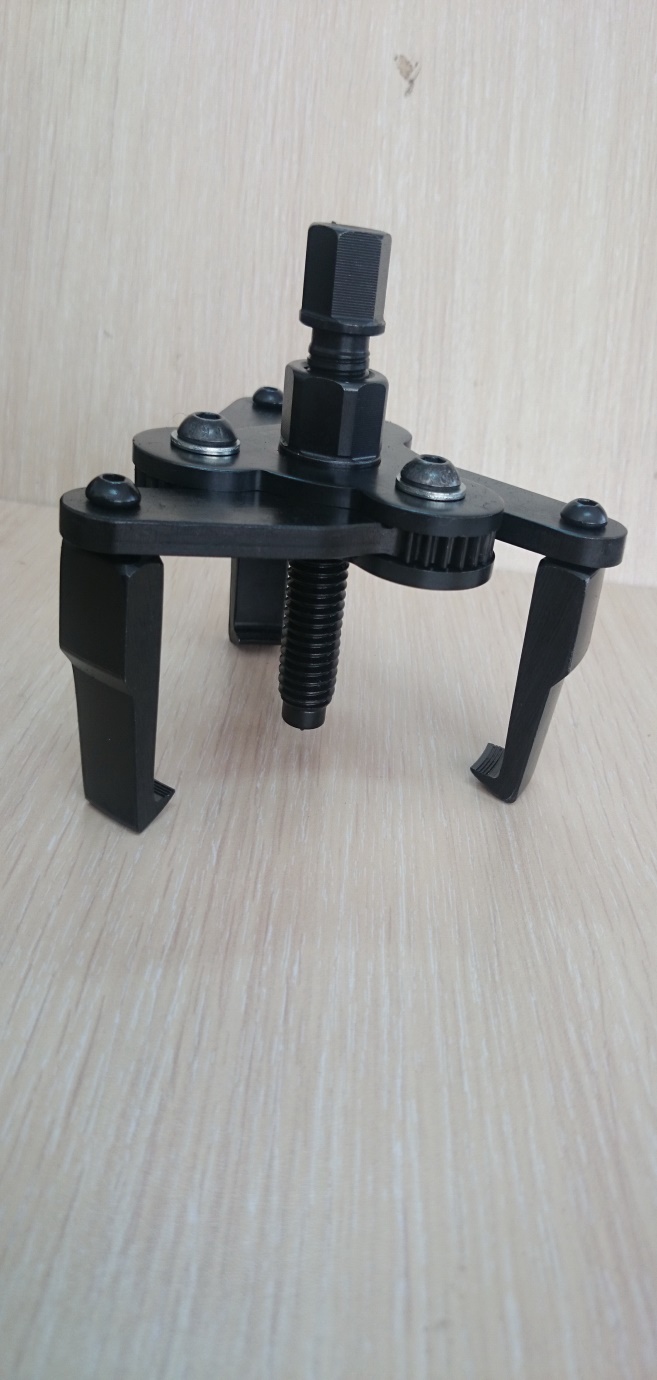

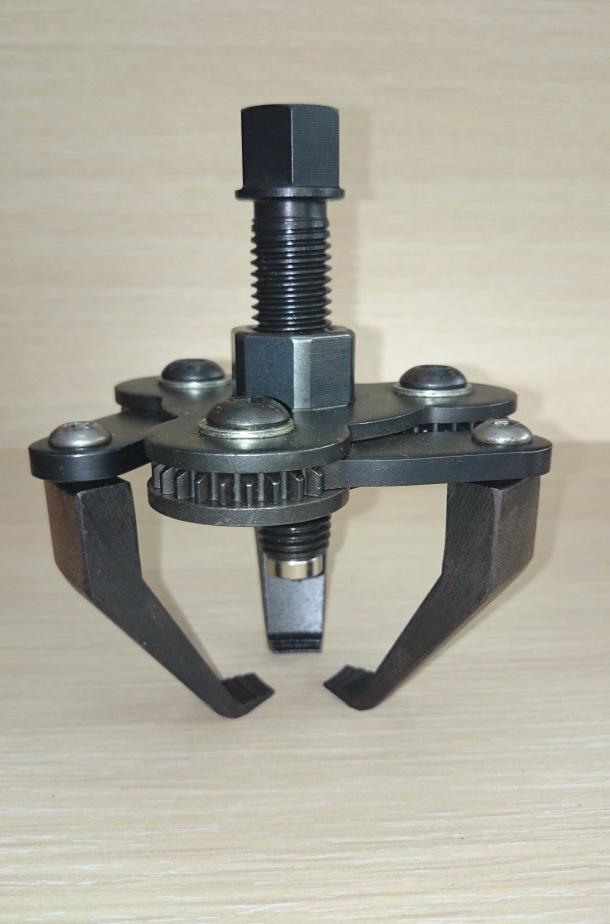

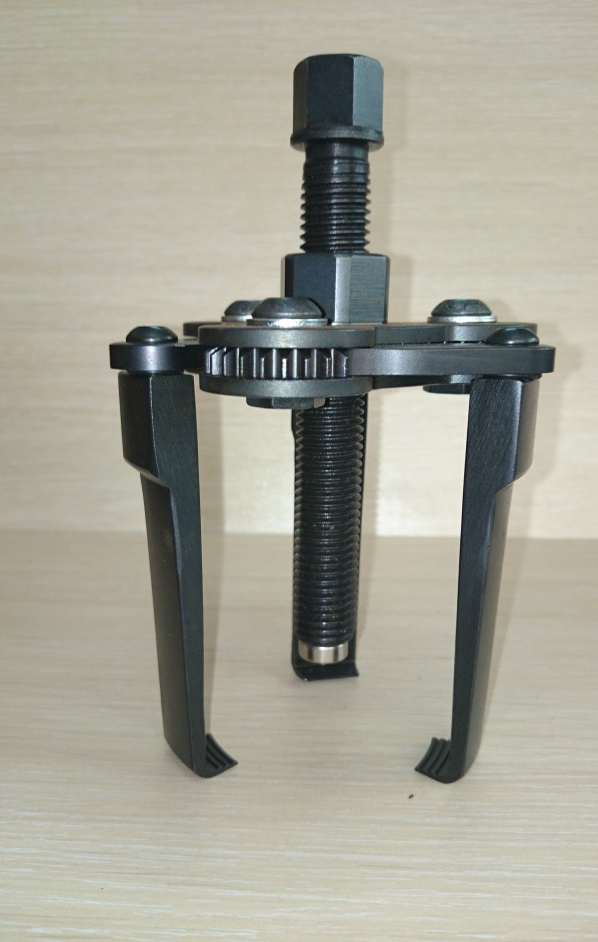

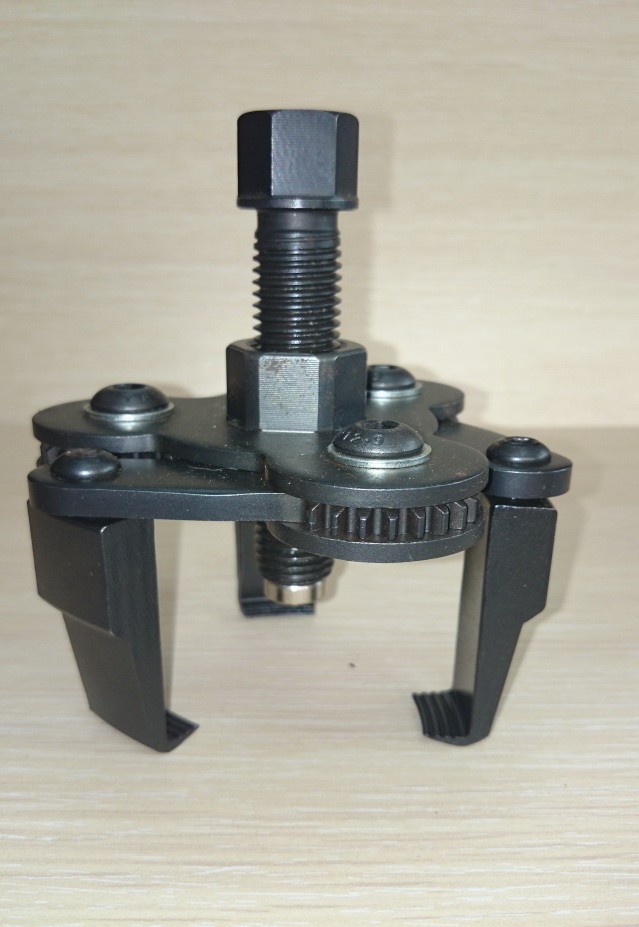

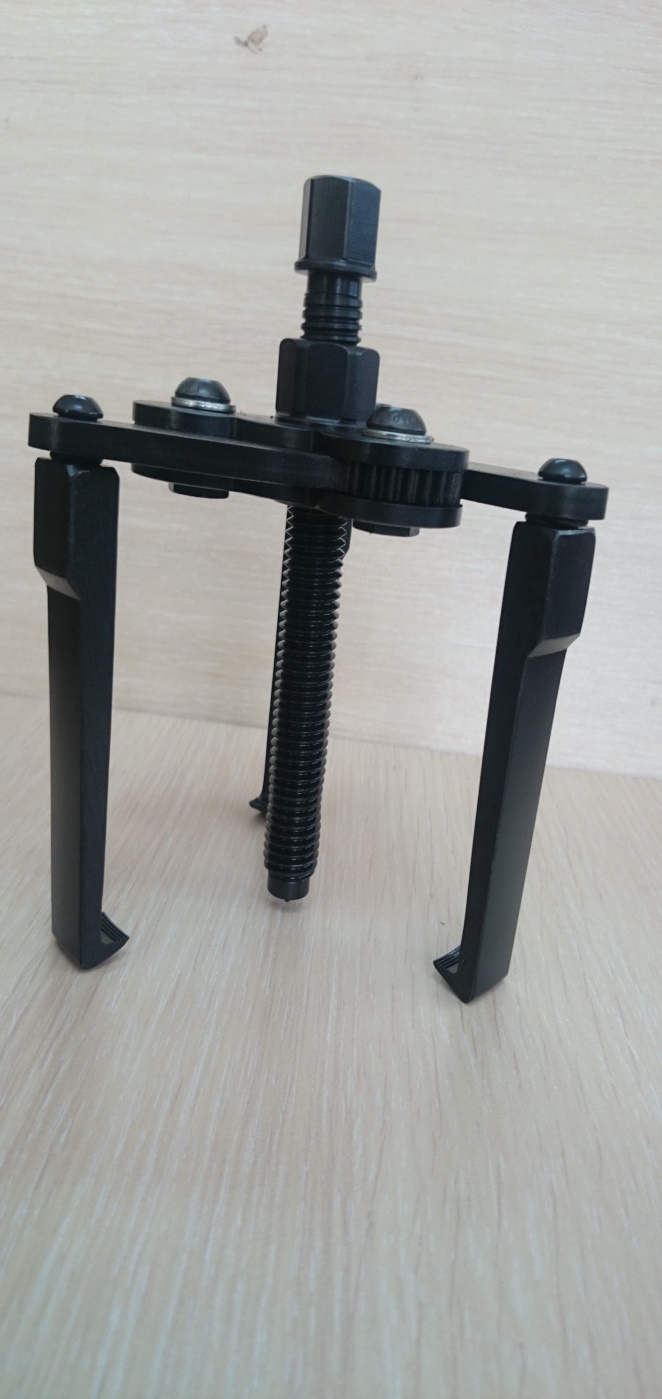

Product number Disassembly range Detachable range with diagonal claws PL135 series 65-135mm 26-135mm PL180 series 50-180mm 0-180mm -
Two-jaw puller features：

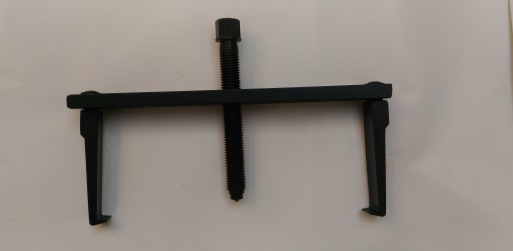

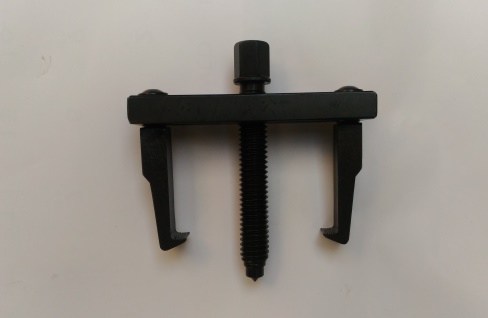

Product number Disassembly range pull PL120 series 20-90mm 1500KG UP PL240 series 20-200mm 1500KG UP
-
Oil Filter Wrench
A combination of practicability and art. A breakthrough of normal design. Welcome any commercial terms.
-
Heat treatment process
Heat treatment process for Vehicle parts, Gears for cruise ship, electronic field metal parts and Gears for all terrain vehicles.
-
Technical developing service
Overall solution in design and development of metal parts machining and heat treatment processes.
-
Contact us
A quality focused company SHINE YEN INDUSTRIAL CO., LTD. is also a correct choice as you business partner.
